Wall Mounted Fume Extractor
Sky Sentry
Model # SS-200-SKY


Wall Mounted Fume Extractor

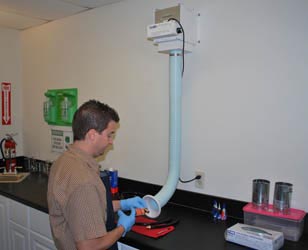

The Sky Sentry is a uniquely engineered wall-mounted fume extractor that is built specifically for small or limited workspace environments where air purification is desired. This source capture system features a free-hanging, self-supportive flex arm that can easily be maneuvered by the operator to their desired location. Installation is made easy with the included wall-mounting kit and will take up minimal space.

Typical applications include: soldering fumes, particulate, removal of organic vapors, solvent and epoxy fumes, chemical fumes, light grinding, and various other industrial processes where a wall mounted fume extractor is needed.

Depending on the application, several filter combinations can be utilized. Typical filtration media include: HEPA [up to 99.97% efficient on particles 0.3 microns and larger], ASHRAE [up to 95% efficient on particles 0.5 microns and larger], Activated Carbon, and specialty-blended filtration media [i.e. Acid Gas, Mercury, Aldehyde, Ammonia].

This Sky Sentry Fume Extractor combines quiet operation, energy-efficient technology, and a unique mounting option that creates an effective solution for many applications that require fume and particulate removal.

Larger models are available [SS-300-SKY & SS-400-SKY].

SPECIFICATIONS
Cabinet Dimensions: 10.5"L x 8"W x 10.5"H
Arm Dimensions: 3"Round x 43" Long

Weight:

Approx. 15 lbs.

Cabinet Material:

16 ga. carbon steel

Motor:

Fractional Horsepower
Available Filter Efficiencies: HEPA Filter - Up to 99.97% efficient on particles 0.3 microns and larger.
ASHRAE Filter - Up to 95% efficient on particles 0.5 microns and larger.
ULPA Filter - Up to 99.9995% efficient on particles 0.12 microns and larger.
Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.

Air Volume:

Up to 100 CFM

Electrical:

115/1/60, .3 amps
220/1/50, .2 amps

Sound Level:

Approx. 56 dba @ 3' from inlet

Warranty:

Limited two-year warranty from date of shipment on defects due to materials or workmanship. PATENT #5,843,197
All specifications are nominal and subject to change without notice.
Not intended for explosive or highly flammable applications. (i.e. when the Lower Flammability Limit is exceeded for any given chemical).
Please consult the specific MSDS for questions regarding flammability limits.
