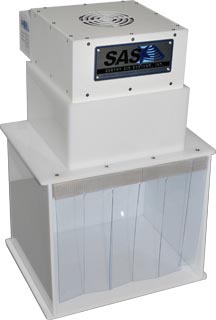

The 12” Wide Mini Portable Clean Room Hood creates a compact, positive-pressure environment for applications that require a sterile workspace. This ISO Class 5 workstation creates a particulate-free enclosure that helps to protect the process from airborne contaminants.
This system creates a vertical laminar flow pattern and houses a dual-stage filtration system comprised of a pre-filter and either a HEPA or ULPA filter. Sentry Air’s HEPA filters are up to 99.97% efficient on particles 0.3 microns and larger, while the ULPA filter is up to 99.9995% efficient on particles 0.12 microns and larger.

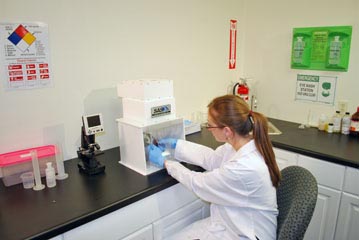

Typical applications for Portable Clean Room Hoods include tissue culturing, data recovery, sterile compounding, medical applications like stem cell therapy practices, sterile cleaning processes, and much more. This unit’s compact size and portable nature also make it a good choice for field-testing applications that require frequent travel.

|
SPECIFICATIONS
Hood Dimensions: |
O.D: 10.5"D x 12.5" W x 15"H
I.D.: 10"D x 12"W x 10"H |
Hood Material: |
Acrylic |
Blower Dimensions: |
11" x 8" x 9" |
Blower Cabinet Material: |
16 ga. carbon steel w/ polyurethane epoxy coating on all surfaces |
Total Weight: |
Approx. 20 lbs. |
Motor: |
Fractional Horsepower, TE |
| Available Filter Efficiencies: |
HEPA Filter - Up to 99.97% efficient on particles 0.3 microns and larger.
ULPA Filter - Up to 99.9995% efficient on particles 0.12 microns and larger.
|
Electrical: |
115/1/60, .3 amps
220/1/50, .2 amps |
Sound Level: |
Approx. 55 dba @ 3' from hood inlet |
Warranty: |
Limited three-year warranty from date of shipment on defects due to materials or workmanship. |
Max Operating Temperature: |
Not to exceed 170 degrees Fahrenheit |
Patented Design: |
U.S. PATENT #5,843,197 |
|
All specifications are nominal and subject to change without notice.
Not intended for explosive or highly flammable applications. (i.e. when the Lower Flammability Limit is exceeded for any given chemical).
Please consult the specific MSDS for questions regarding flammability limits.
|
|
|
|
|
|
