Conforms to CDC & NIH Standards for Class I Biological Safety Cabinet*

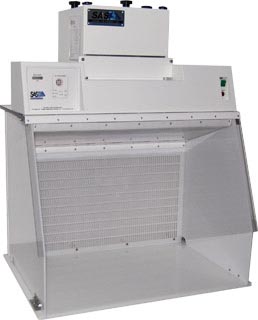

SENTRY AIR SYSTEMS Horizontal Laminar Flow Hood offers protection to the operator from processes occurring within the hood. The horizontal laminar flow hood provides a negative pressure to the enclosure by filtering the contaminated air through HEPA and/or Carbon Filtration exhausting clean air back into the room. This unit features unique hinged folding side panels, a high-density polyethylene base, a clear polycarbonate top and a hinged sloping front lid.
The powerful fan on top of the hood combines with a variety of Hepa filters and carbon filters to provide strong suction accross the inlet area. Typical uses may include capsule filling, powder filling, R&D, and a variety of applications involving chemical fumes and dusts.
Sentry Air's Horizontal Laminar Flow Hood can provide an effective and economical solution for many commercial, medical, laboratory and industrial applications.
Click here to download a product brochure (PDF)
*Per Primary Containment for Biohazard
3rd Edition Department of H&HS & NIH Sept 2007
Front Filter Access Door
•Enables easy access to filters
Audible Air Flow Alarm
•Indicates High/Low Air Velocities
Hour Counter
•Indicates filter and unit lifetime, displayed in hours
|
Variable Speed Controller
•No pre-set speeds, adjusts air flow
Magnetic Filter Maintenance Chart
•To record filter maintenance & facilitate reordering
Optional Minihelic Gauge
•Assists in monitoring HEPA filter condition
|
•On/Off Switch
•Variable Speed Controller
•Flow Switch Indicator Light
|
•Air Velocity Alarm
•Hour Counter
|
|
SPECIFICATIONS
| Hood Dimensions: |
O.D.: 24"D x 32"W x 25"H
I.D.: 23.5"D x 30"W x 24"H |
Blower Dimensions: |
13" L x 13" W x 14" H |
| Blower Material: |
16 ga. carbon steel w/ polyester epoxy coating on all surfaces |
| Total Weight: |
Approx. 110 lbs. |
| Motor |
Fractional Horsepower, TEFC |
| Electrical: |
115/1/60, Approx. 2 amps |
| Sound Level |
Approx. 55 dba @ 3' from hood inlet |
| Approximate Inlet Velocities (FPM): |
Pre-filter & 99.97% HEPA Filter-130/25 FPM High/Low
Pre-filter & Heavy-duty Carbon Filter - 115/20 FPM High/Low |
| Warranty: |
Limited one-year warranty from date of shipment on defects due to materials or workmanship. |
Max Operating Temp: |
Not to exceed 170 degrees Fahrenheit |
| Patented Design: |
U.S. PATENT #5,843,197 |
|
All specifications are nominal and subject to change without notice.
Not intended for explosive or highly flammable applications. (i.e. when the Lower Flammability Limit is exceeded for any given chemical).
Please consult the specific MSDS for questions regarding flammability limits.
|
|
|
|
|
|
