60" Ductless Fume Hood
SS-360-DCH
|
|
 |
|
| |
|

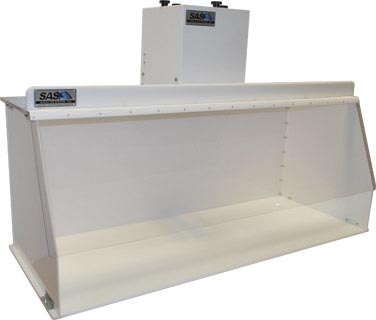

When the application requires a hooded type enclosure on the work surface, the SS - 360 -DCH Ductless Fume Hood may be an excellent choice. This unit features unique hinged folding side panels, a high-density polyethylene base, a clear polycarbonate top and a hinged sloping front lid. A standard 33 Watt -27" Wide light and hand-held air velocity meter are included.
For additional visibility, a transparent version is available at extra cost.
The powerful fan on top of the hood combines with a variety of Hepa filters and carbon filters to provide strong suction across the inlet area. Typical uses may include capsule filling, powder filling, R&D, light grinding and a variety of applications involving chemical fumes and dusts.
Sentry Air's Ductless Fume Hood can provide an effective and economical solution for many commercial, medical, laboratory and industrial applications.
|
SPECIFICATIONS
Hood Dimensions: |
O.D: 24"D x 62W" x 25"H
I.D.: 23.5"D x 60"W x 24"H |
| Hood Material: |
Sides: .250" White Acrylic
Base: .500" White High Density Polyethylene
Top: .500" Clear Polycarbonate
Front: .250" Clear Polycarbonate |
| Blower Dimensions: |
13" L x 13" W x 13" H |
| Blower Material: |
16 ga. carbon steel w/ polyester epoxy coating on all surfaces |
| Total Weight: |
100 lbs.
|
| Motor: |
Fractional Horsepower, TEFC |
| Electrical: |
115/1/60, Approx. 2 amps |
| Sound Level: |
61 to 66 dba (Blower Speed: Low to High) |
| Approximate Inlet Velocities: |
Pre-filter & 99.97% HEPA Filter - 100 FPM High; 25 FPM Low
Pre-filter & Heavy-duty Carbon Filter - 70 FPM High; 20 FPM Low |
| Warranty: |
Limited one-year warranty from date of shipment on defects due to materials or workmanship. |
| Patented Design: |
U.S. PATENT #5,843,197 |
|
|
|
|
|
|
|
