High Flow Ductless Fume Hood
70" Wide Ductless Fume Hood

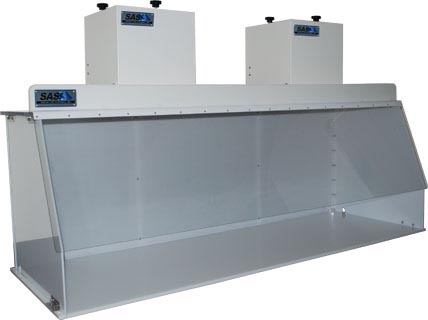

SS-370-DCH-D




When the application requires a filtered, 70” wide hooded type enclosure on the work surface, the SS-370-DCH-D Ductless Fume Hood may be an excellent choice. This unit features unique hinged folding side panels, a high-density polyethylene base, a clear polycarbonate top and a hinged sloping front lid.

For additional visibility, a transparent version is available at extra cost.


The powerful fans on top of the hood combine with a variety of Hepa and/or carbon filters to provide strong suction across the inlet area. Typical uses may involve the filtration of Toluene, MEK, Acetone, Alcohols, Solvents, and a variety of processes involving chemical fumes and dusts, where both a high velocity and high filtration area are a necessity.

Sentry Air's Ductless Fume Hood can provide an effective and economical solution for many commercial, medical, laboratory and industrial applications.

SPECIFICATIONS
Hood Dimensions:

O.D: 24" D x 72” W x 25" H
I.D.: 23.5" D x 70" W x 24" H

Hood Material:

Sides: .250" White Acrylic
Base: .500" White High Density Polyethylene
Top: .500" Clear Polycarbonate
Front: .250" Clear Polycarbonate

Blower Dimensions:

13" L x 13" W x 13.75" H

Blower Material:

16 ga. carbon steel w/ polyester epoxy coating on all surfaces

Total Weight:

115/1/60, Approx. 4 amps

Motor

Fractional Horsepower, TEFC

Electrical:

115/1/60, Approx. 2 amps

Sound Level

Approx. 61 to 66 dba (Blower Speed: Low to High)

Approximate Inlet Velocities:

Pre-filter & 99.97% HEPA Filter - 170 FPM High; 25 FPM Low
Pre-filter & Heavy-duty Carbon Filter - 115 FPM High; 20 FPM Low

Warranty:

Limited one-year warranty from date of shipment on defects due to materials or workmanship.

Patented Design:

U.S. PATENT #5,843,197

All specifications are nominal and subject to change without notice.
Sentry Air Systems offers an exclusive line of top quality air cleaners for a variety of applications. For more information on this and other products call the number below.

Sentry Air Systems, Inc.
6999 West Little York, Ste. P1
Houston, TX.  77040

USA: (800) 799- 4609

Intl: (713) 690- 2153

Fax: (713) 690- 7872
Email: sales@sentryair.com
