Winged Sentry w/ Lid

Model # SS-200-WSL

Laminar Flow Hood Negative Pressure
Loading the player...

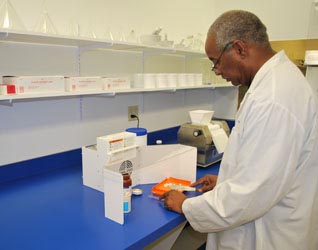

The Winged Sentry with Lid is a compact benchtop fume extractor which offers a unique and customized design that includes adjustable “wing flaps” and a clear acrylic hinged lid to assist in directing fumes into the unit’s inlet and filter chamber. These wings are adjustable according to the operator’s preference and the hinged lid provides a hood-like enclosure for added containment.

Appropriate filtration media is installed in the Winged Sentry based on the application being performed by the operator. HEPA [up to 99.97% efficient on particles 0.3 microns and larger], ASHRAE [up to 95% efficient on particles 0.5 microns and larger], Activated Carbon, and specialty-blended media [i.e. Acid Gas, Mercury, Aldehyde, Ammonia] are the most common filters for this unit. The Winged Sentry is an optimal choice for fume extraction in applications such as soldering, capsule filling, powder filling, solvent and epoxy fumes, R&D, light grinding and a variety of applications involving chemical fumes and dusts.

The Winged Sentry with Lid provides a highly energy-efficient, quiet and economical solution to many fume extraction needs.

The Winged Sentry is also available without a lid [SS-200-WS] and also with a more powerful fan [SS-300-WSL].

Specifications
Cabinet Dimensions:
8.5"L x 8"W x 10.5"H
Work Area Dimension w/ Lid:
9"L x 21.5"W x 8"H
Weight:
12 lbs.
Cabinet Material:
16 ga. carbon steel
Lid Material:
1/8" Clear Acrylic
Motor:
Fractional Horsepower
Available Filter Efficiencies:
HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns in size.
ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns in size.
ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns in size.
Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.
Air Volume:
Up to 100 CFM
Electrical:
115/1/60, .3 amps
220/1/50, .2 amps
Sound Level:
Approx. 58 dba @ 3' from inlet
Warranty:
Limited two-year warranty from date of shipment on defects due to materials or workmanship.
Patented Design:
U.S. PATENT #5,843,197

All specifications are nominal and subject to change without notice. Not intended for explosive or highly flammable applications. (i.e. when the Lower Flammability Limit is exceeded for any given chemical). Please consult the specific MSDS for questions regarding flammability limits.

Accessories

Variable Speed Controller
SS-000-VSC
Control air velocities
Hour Counter
SS-000-HC
Displays hours unit has
been in operation.
