Portable Fume Extractor
Portable Floor Sentry
Model # SS-300-PFS


Portable Fume Extractor

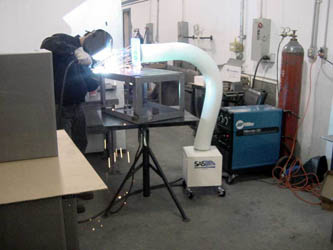

The Portable Floor Sentry fume extractor is a safety engineering control used for the capture and filtration of airborne contaminants. This source-capture fume extractor features heavy-duty casters for easy mobility, a 5" diameter flame-retardant and self-supportive flex arm, a small footprint, and high-quality filtration media.

Typical applications for this unit include: welding fume control, chemical fume extraction, soldering, solvent and epoxy fume control, powder filling, light grinding, and a variety of applications involving chemical fumes and dust.

Several filter media options are available for this unit and include: HEPA filtration [up to 99.97% efficient on particles 0.3 microns and larger, ASHRAE filtration [up to 95% efficient on particles 0.5 microns and larger], Activated Carbon, and specialty-blended filter media [i.e. Acid Gas, Mercury, Aldehyde, Ammonia]. The Portable Floor Sentry Fume Extractor allows multiple filter media to be housed inside the filter chamber for applications that emit both particulates and fumes.

Two larger models [SS-400-PFS & SS-450-PFS] and a small model are available [SS-200-FS].

Portable Floor SentryPortable Floor Sentry

SPECIFICATIONS
Cabinet Dimensions:

15.5"L x 13"W x 16.5"H

Arm Dimensions:

5" Round x 68" Long fire retardant flex hose

Weight:

40 lbs.

Cabinet Material:

16 ga. carbon steel w/ polyester epoxy coating on all surfaces

Motor:

Fractional Horsepower

Available Filter Efficiencies: HEPA Filter - Up to 99.97% efficient on particles 0.3 microns and larger.
ASHRAE Filter - Up to 95% efficient on particles 0.5 microns and larger.
ULPA Filter - Up to 99.9995% efficient on particles 0.12 microns and larger.
Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.

Air Volume:

Variable Speed Control Standard on 115V
350 CFM High, Down to 50 CFM Low
On/Off Toggle Switch Standard on 220V

Electrical:

115/1/60, 2 amps
220/1/50, .75 amps

Sound Level:

61 to 66 dba (Blower Speed: Low to High)

Warranty:

Limited two-year warranty from date of shipment on defects due to materials or workmanship.

Patented Design:

U.S. PATENT #5,843,197
U.S. PATENT #11/956046 Pending

All specifications are nominal and subject to change without notice.
Not intended for explosive or highly flammable applications. (i.e. when the Lower Flammability Limit is exceeded for any given chemical).
Please consult the specific MSDS for questions regarding flammability limits.
ACCESSORIES

Magnehelic Gage
SS-300-MAG
Monitors filter saturation

Quick Change Pre-Filter
SS-300-QCPF
Allows easy access to pre-filters
Sentry Air Systems offers an exclusive line of top quality air cleaners for a variety of applications. For more information on this and other products call the number below.

Sentry Air Systems, Inc.
6999 West Little York, Ste. P1
Houston, TX.  77040

USA: (800) 799- 4609

Intl: (713) 690- 2153

Fax: (713) 690- 7872
Email: sales@sentryair.com
