Mounted Fume Extractor w/ Hose

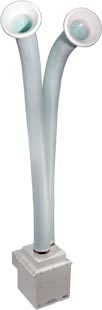

Mounted Sentry Double

Model # SS-200-MSD

The Mounted Sentry Double is an economical choice for small or limited workspace environments where clean air is desired for up to two operators. This system features two self-supportive flex arms which provide source capture of airborne contaminants, while mounting options can free up much needed workspace. Mounting configurations include bench-mounting, under-the table mounting, and shelf or wall mounting.

Typical applications for this unit include soldering, chemical fumes, solvent and epoxy fumes, laser fumes, light grinding, and many other procedures that involve the emission of particulate and fume.

High-quality filter media for this unit is customized depending on the application being performed, but typically includes HEPA filters [up to 99.97% efficient on particles 0.3 microns and larger], ASHRAE filters [up to 95% efficient on particles 0.5 microns and larger], Activated Carbon, and specialty-blended filtration media [i.e. Acid Gas, Mercury, Aldehyde, Ammonia].

The Mounted Sentry Double provides a highly energy-efficient, quiet and economical solution for many fume extraction needs for multiple operators.

A single-arm model [SS-200-MSS] is also available.

Clean Air
Specifications
Cabinet Dimensions:
10.5"L x 10"W x 10.5"H
Arm Dimensions:
(2) 3" Round x 48" Long
Weight:
10 lbs.
Cabinet Material:
16 ga. carbon steel
Motor:
Fractional Horsepower
Available Filter
Efficiencies:
HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns in size.
ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns in size.
ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns in size.
Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.
Air Volume:
Up to 100 CFM Per Arm
Electrical:
115/1/60, .3 amps
220/1/50, .2 amps
Sound Level:
Approx. 58 dba @ 3' from inlet
Warranty:
Limited two-year warranty from date of shipment on defects due to materials or workmanship.
Patented Design:
U.S. PATENT #5,843,197

All specifications are nominal and subject to change without notice. Not intended for explosive or highly flammable applications. (i.e. when the Lower Flammability Limit is exceeded for any given chemical). Please consult the specific MSDS for questions regarding flammability limits.

Accessories

Variable Speed Controller
SS-000-VSC
Control air velocities
Hour Counter
SS-000-HC
Displays hours unit has
been in operation.
