Wall Mounted Fume Extractors

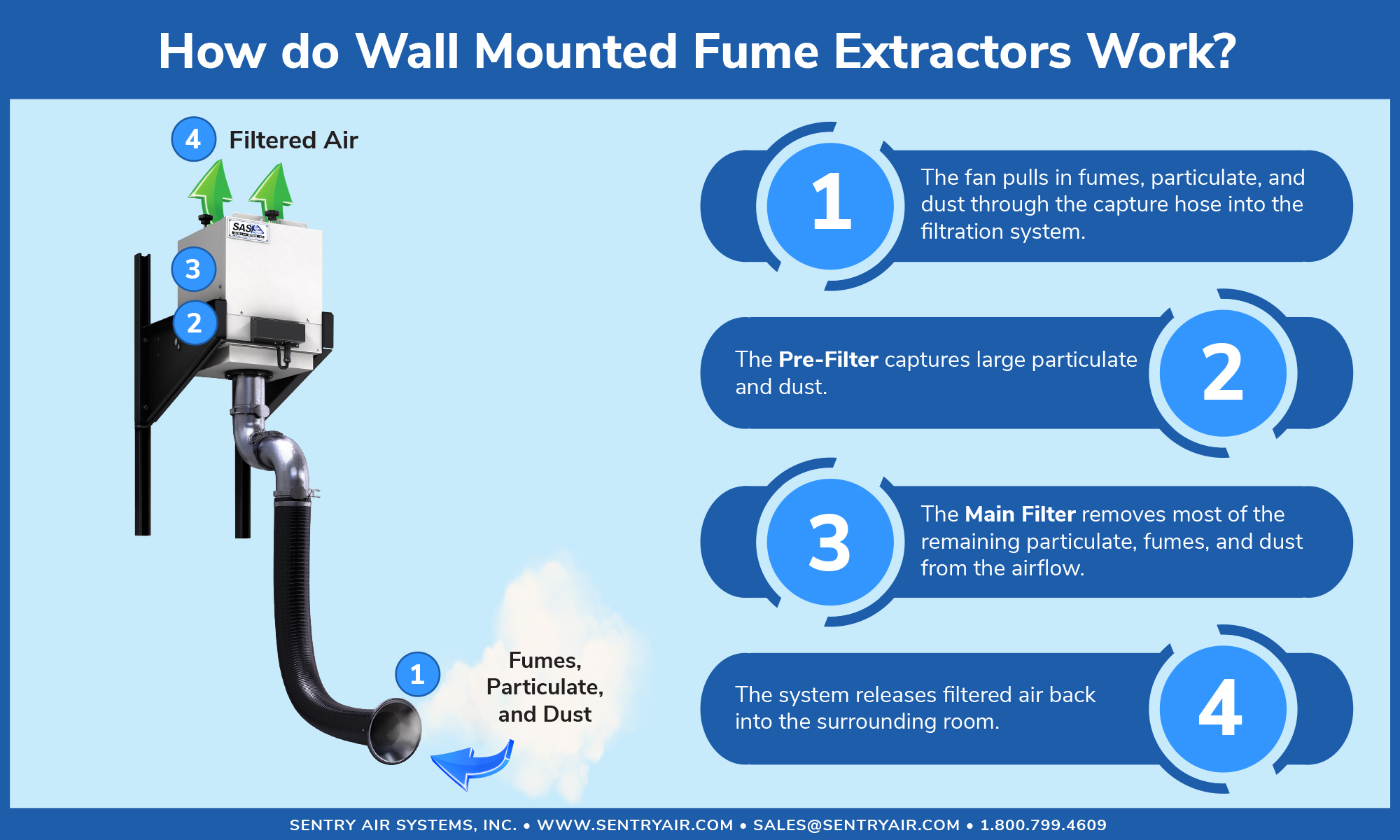

The wall mounted fume extractor is a uniquely engineered air filtration system that is built specifically for small or limited workspace environments where air purification is desired. This source capture system features a free-hanging, self-supportive flex arm that can easily be maneuvered by the operator to their desired location.

This fume extractor combines quiet operation, energy-efficient technology, and a unique mounting option that creates an effective solution for many applications that require fume and particulate removal.

Installation is made easy with the included wall-mounting kit and will take up minimal space. When mounted to the wall, the arm features a 62.5” swivel radius. In limited space environments, this unit frees up valuable benchtop and floor space.

Select Your Size:

200 Series


Wall Mounted Fume Extractor
Loading the player...

200 Series Wall Mounted Fume Extractor Specifications

    Cabinet Dimensions:     Cabinet Material:
     - 10.5"L x 8"W x 10.5"H      - 16 ga. carbon steel
    Total Weight: 15 lbs.     Motor: Fractional Horsepower
    Arm Dimensions: 3" Round x 58" Long

   Available Filter Efficiencies:

   HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns in size.
   ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns in size.
   ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns in size.
   Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.

   Air Volume:
   Up to 100 CFM

   Electrical:    Sound Level:
    115/1/60, .3 amps     Approx. 56 dba @ 3' from inlet
    220/1/50, .2 amps

   Max Operating Temperature:
   Not to exceed 170 degrees Fahrenheit

   Warranty:
   Limited two-year warranty from date of shipment on defects due to materials or workmanship.

   Patented Design:
   U.S. PATENT #5,843,197

300 Series


Wall Mounted Fume Extractor
Loading the player...

300 Series Wall Mounted Fume Extractor Specifications

    Cabinet Dimensions:     Cabinet Material:
     - 13"L x 13"W x 16.5"H      - 16 ga. carbon steel
    Total Weight: 50 to 80 lbs     Motor: Fractional Horsepower
    Arm Dimensions: 4" Round x 32" Long     Flex Arm Working Area: 62.5" Swivel Radius

   Available Filter Efficiencies:

   HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns in size.
   ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns in size.
   ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns in size.
   Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.

   Air Volume:
   Up to 100 CFM350 CFM High, Down to 50 CFM Low

   Electrical:    Sound Level:
    115/1/60, 2 amps     61 to 66 dba (Blower Speed: Low to High)
    220/1/50, .75 amps

   Max Operating Temperature:
   Not to exceed 170 degrees Fahrenheit

   Warranty:
   Limited two-year warranty from date of shipment on defects due to materials or workmanship.

   Patented Design:
   U.S. PATENT #5,843,197
   U.S. PATENT #8,353,745

400 Series


Wall Mounted Fume Extractor
Loading the player...

Standard

Cabinet Dimensions:
- 22.5"L x 20"W x 19.5"H
Cabinet Material:
- 16 ga. carbon steel
Arm Dimensions:
- 4" Round x 32" Long fire retardant flex hose
Flex Arm Working Area:
62.5" Swivel Radius
Total Weight:
51 lbs to 100 lbs.
Motor:
Fractional Horsepower

Available Filter Efficiencies:
HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns
ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns
ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns
Activated Carbon & Specialty-Blended Filters

Air Volume:
Variable Speed Control Standard
400 CFM High, Down to 50 CFM Low

Electrical:
115/1/60, 2.5 amps
220/1/50, 1.5 amps

Sound Level: 60 dba @ 3 ft. from hood inlet

Max Operating Temperature: Not to exceed 170 degrees Fahrenheit

Warranty: Limited two-year warranty from date of shipment on defects due to materials or workmanship.

Patented Design:
U.S. PATENT #5,843,197
U.S. PATENT #8,353,745

High Flow

Cabinet Dimensions:
- 22.5"L x 20"W x 19.5"H
Cabinet Material:
- 16 ga. carbon steel
Arm Dimensions:
- 4" Round x 32" Long fire retardant flex hose
Flex Arm Working Area:
62.5" Swivel Radius
Total Weight:
62 lbs to 112 lbs.
Motor:
1.5 HP

Available Filter Efficiencies:
HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns
ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns
ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns
Activated Carbon & Specialty-Blended Filters

Air Volume:
Variable Speed Control Standard
500 CFM High, Down to 50 CFM Low

Electrical:
115/1/60, 10.7 amps
220/1/50, 5.35 amps

Sound Level: 72 dba @ 3 ft. from hood inlet

Max Operating Temperature: Not to exceed 170 degrees Fahrenheit

Warranty: Limited two-year warranty from date of shipment on defects due to materials or workmanship.

Patented Design:
U.S. PATENT #5,843,197
U.S. PATENT #8,353,745

Fan Powered Extractor Arm


Fan Powered Fume Extractor Arm
Loading the player...

Fan Powered Extractor Arm Specifications

    Fan Dimensions:     Flex Arm:
     - 45"L x 24"W x 24"H      - 4" Dia. w/ 7" O.D. Round Source Capture Hood
    Flex Arm Working Area:     Total Weight: 15 lbs.
     62.5" Swivel Radius when unit is mounted     Arm Dimensions: 3" Round x 58" Long
    Total Weight: 15 lbs.     Motor: Fractional Horsepower

   Air Volume:
   160 CFM (High) to 50 CFM (Low)

   Electrical:    Sound Level:
    115/1/60, Less than one amp     Approx. 61-66 dba @ 3’

   Max Operating Temperature:
   Not to exceed 170 degrees Fahrenheit

   Warranty:
   Limited two-year warranty from date of shipment on defects due to materials or workmanship.

   Patented Design:
   U.S. PATENT #5,843,197

Wall Mounted Fume Extractors features and benefits

  • Variable Speed Remote Controller Included (115V only)
  • Wall-Mounting Brackets Included
  • Quiet Operation
  • Reliable, Low Maintenance Operation
  • Low Power Consumption
  • Simple, Quick "No Tool" Filter Change
  • Long Filter Life
  • Optional Magnehelic Gage
  • Optional Hour Counter

Configurations

Extractor Arm Without Fan
SS-000-EA4
Mounted Sentry w/ Stand
SS-400-MS-FES

brochure

Accessories

Quick Change Pre-Filter
SS-300-QCPF
Allows easy access to pre-filters.
Remote Control Box
SS-300-RCB
Controls unit operation remotely.
Magnehelic Gage
SS-300-MAG
Monitors filter saturation

Applications

Soldering
Welding
Chemical Fumes
Light Grinding
Solvent Fume Control
Dust
Pharmaceutical Powders
Buffing
Refinishing
Brazing
Soldering
