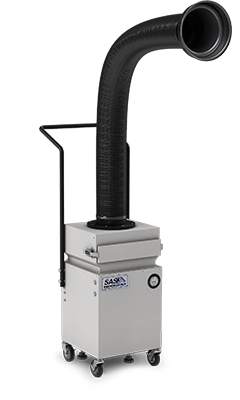

Portable Floor Sentry

The Portable Floor Sentry fume extractor is a safety engineering control used for the capture and filtration of airborne contaminants. This source-capture fume extractor features heavy-duty casters for easy mobility, a flame-retardant and self-supportive flex arm, a small footprint, and high-quality filtration media.

Several filter media options are available for this unit and include: HEPA filtration [up to 99.97% efficient on particles 0.3 microns and larger, ASHRAE filtration [up to 95% efficient on particles 0.5 microns and larger], Activated Carbon, and specialty-blended filter media [i.e. Acid Gas, Mercury, Aldehyde, Ammonia]. The Portable Floor Sentry Fume Extractor allows multiple filter media to be housed inside the filter chamber for applications that emit both particulates and fumes.

Features and Benefits

  • Variable Speed Controller Included (115V only)
  • Portability Handle Included
  • Quiet Operation
  • Reliable, Low Maintenance Operation
  • Low Power Consumption
  • Simple, Quick "No Tool" Filter Change
  • Long Filter Life
  • Optional Magnehelic Gage
  • Optional Hour Counter

Available Filters

  • HEPA Filter
    Up to 99.97% efficient on particles down to 0.3 microns
  • ASHRAE Filter
    Up to 95% efficient on particles down to 0.5 microns
  • ULPA Filter
    Up to 99.9995% efficient on particles down to 0.12 microns
  • Activated Carbon & Specialty-Blended Filters

200 Series

Product Video

Cabinet Dimensions:
- 10.5"L x 8"W x 10.5"H

Arm Dimension:
- 3" or 4" Diameter x 43" Long

Motor:
Fractional Horsepower

Weight:
Approx. 10 lbs.

Available Filter Efficiencies:
HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns
ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns
ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns
Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.

Electrical:
115/1/60, .3 amps
220/1/50, .2 amps

Sound Level:
56 dba @ 3 ft. from hood inlet

Warranty:
Limited two-year warranty from date of shipment on defects due to materials or workmanship.

Patented Design:
U.S. PATENT #5,843,197
U.S. PATENT #8,353,745

Product Video

Cabinet Dimensions:
- 15.5"L x 13"W x 16.5"H

Arm Dimension:
- 5" Diameter x 68" Long

Motor:
Fractional Horsepower

Weight:
Approx. 40 lbs.

Available Filter Efficiencies:
HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns
ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns
ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns
Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.

Air Volume:
350 CFM High, Down to 50 CFM Low

Electrical:
115/1/60, 2 amps
220/1/50, .75 amps

Sound Level:
61 to 66 dba (Blower Speed: Low to High)

Warranty:
Limited two-year warranty from date of shipment on defects due to materials or workmanship.

Patented Design:
U.S. PATENT #5,843,197
U.S. PATENT #8,353,745

Product Video

Standard

Cabinet Dimensions:
- 22.5"L x 20"W x 19.5"H

Arm Dimension:
- 6" Round x 72" Long fire retardant flex hose

Weight:
50 lbs. to 100 lbs.

Cabinet Material:
16 ga. carbon steel

Motor:
Fractional Horsepower

Available Filter Efficiencies:
HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns
ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns
ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns
Activated Carbon & Specialty-Blended Filters

Air Volume:
Variable Speed Control Standard
700 CFM High, Down to 50 CFM Low

Electrical:
115/1/60, 2.5 amps
220/1/50, 1.5 amps

Sound Level:
60 dba @ 3 ft.

Max Operating Temperature:
Not to exceed 170 degrees Fahrenheit

Warranty: Limited two-year warranty from date of shipment on defects due to materials or workmanship.

Patented Design:
U.S. PATENT #5,843,197
U.S. PATENT #8,353,745

High Flow

Cabinet Dimensions:
- 22.5"L x 20"W x 19.5"H

Arm Dimension:
- 6" Round x 72" Long fire retardant flex hose

Weight:
62 lbs. to 112 lbs.

Cabinet Material:
16 ga. carbon steel

Motor:
1.5 HP

Available Filter Efficiencies:
HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns
ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns
ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns
Activated Carbon & Specialty-Blended Filters

Air Volume:
Variable Speed Control Standard
950 CFM High, Down to 50 CFM Low

Electrical:
115/1/60, 10.7 amps
220/1/50, 5.35 amps

Sound Level:
72 dba @ 3 ft.

Max Operating Temperature:
Not to exceed 170 degrees Fahrenheit

Warranty: Limited two-year warranty from date of shipment on defects due to materials or workmanship.

Patented Design:
U.S. PATENT #5,843,197
U.S. PATENT #8,353,745

Product Video

Standard

Cabinet Dimensions:
- 30” D x 30” W x 42.5” H

Cabinet Material:
16 ga. carbon steel

Arm Specifications:
- 7” Diameter, 7’ L
- Rigid segment: Aircraft-grade aluminum
- 6” diameter Flexible segment: Black Flex Sentry™
- 10" round capture hood

Total Weight:
Approximately 225lbs without Filters
Approximately 317lbs with Filters Installed

Motor:
Fractional Horsepower

Available Filter Efficiencies:
(4) Micro-Pleat Series 1 Particulate Filters (MERV 13 efficiency rating)
(4) HEPA Filters (Up to 99.97% efficient on particles down to 0.3 microns) Non-Cleanable
(4) 42 lb. Activated Carbon Filters (efficiency varies depending on application)
(4) 42lb. Specialty Blended Carbon Filters
Double filters with HEPA and Carbon Available

Air Volume:
Up to 815 CFM High

Sound Level:
65 dba @ 3 ft. from hood inlet

Electrical:
115/1/60, 2.5 amps
220/1/50, 1.5 amps

Warranty:
Limited two-year warranty from date of shipment on defects due to materials or workmanship.

Patented Design:
U.S. PATENT #61,563,228 Pending

High Flow

Cabinet Dimensions:
- 30” D x 30” W x 42.5” H

Cabinet Material:
16 ga. carbon steel

Arm Specifications:
- 7” Diameter, 7’ L
- Rigid segment: Aircraft-grade aluminum
- 6” diameter Flexible segment: Black Flex Sentry™
- 10" round capture hood

Total Weight:
Approximately 240lbs without Filters
Approximately 332lbs with Filters Installed

Motor:
1.5 HP

Available Filter Efficiencies:
(4) Micro-Pleat Series 1 Particulate Filters (MERV 13 efficiency rating)
(4) HEPA Filters (Up to 99.97% efficient on particles down to 0.3 microns) Non-Cleanable
(4) 42 lb. Activated Carbon Filters (efficiency varies depending on application)
(4) 42lb. Specialty Blended Carbon Filters
Double filters with HEPA and Carbon Available

Air Volume:
Up to 955 CFM High

Sound Level:
72 dba @ 3 ft. from hood inlet

Electrical:
115/1/60, 10.7 amps
220/1/50, 5.35 amps

Warranty:
Limited two-year warranty from date of shipment on defects due to materials or workmanship.

Patented Design:
U.S. PATENT #61,563,228 Pending

Product Video

Cabinet Dimensions:
- 30" diameter
- 27 " height, with plenum attached

Arm Dimension:
- 7” Diameter, 7’ L Flexible, with 10.5" round inlet

Cabinet Material
ABS Plastic & Aluminum

Motor:
Fractional Horsepower

Total Weight:
Approx. 100 lbs.

Available Filters:
- Round MERV 13 Micro-Pleat Series 2 Particulate Filter
- 32lb Disposable Cartridge w/ Activated Carbon

Air Volume:
Variable Speed Control Standard | 530 CFM High

Electrical:
115/1/60, 2 amps
220/1/50, .75 amps

Sound Level:
Approximately 74 dba (High), 48 dba on (low). 3’ from inlet

Warranty:
Limited two-year warranty from date of shipment on defects due to materials or workmanship.

Patented Design:
Patent pending 13/463, 347

Quick Compare

Portable Fume Extractor
200 Series
Portable Fume Extractor
300 Series
Portable Fume Extractor
400 Series
Portable Fume Extractor
500 Series
Portable Fume Extractor
Rugged Air
Cabinet Dimensions: 10.5"L x 8"W x 10.5"H 15.5"L x 13"W x 16.5"H 22.5"L x 20"W x 19.5"H 30” D x 30” W x 42.5” H 30" diameter
27 " height, with plenum attached
CFM: Up to 100 CFM Up to 350 CFM 400 Series: Up to 700 CFM
450 Series: Up to 950 CFM
500 Series: Up to 785 CFM
550 Series: Up to 1060 CFM
Up to 530 CFM
Filter Sizes: Small Medium Large Extra Large | Cleanable Extra Large | Cleanable
Weight: Approx. 10 lbs. Approx. 40 lbs. 50 lbs. to 100 lbs. Approx. 225lbs w/out Filters
Approx. 317lbs w/ Filters
Approx. 100 lbs.
Electrical 115/1/60, .3 amps
220/1/50, .2 amps
115/1/60, 2 amps
220/1/50, .75 amps
400 Series:
115/1/60, 2 amps
220/1/50, .75 amps
450 Series:
115/1/60, 10.7 amps
220/1/50, 5.35 amps
500 Series:
115/1/60, 2.5 amps
220/1/50, 1.5 amps
550 Series:
115/1/60, 10.7 amps
220/1/50, 5 amps
115/1/60, 2 amps
220/1/50, .75 amps
Sound Level 56 dba @ 3 ft. from hood inlet 61 to 66 dba (Blower Speed: Low to High) 60 dba @ 3 ft. 72 dba @ 3 ft. from hood inlet Approximately 74 dba (High), 48 dba on (low). 3’ from inlet

Accessories

Quick Change Pre-Filter
Portable Fume Extractor

SS-300-QCPF
Allows easy access to pre-filters.

Remote Control Box
Portable Fume Extractor

SS-300-RCB
Controls unit operation remotely.

Magnehelic Gage
Portable Fume Extractor

SS-300-MAG
Monitors filter saturation.


Additional Configurations

Model 400 w/ 7’ Heavy Duty Arm
Portable Fume Extractor

SS-400-PFS-HFA
