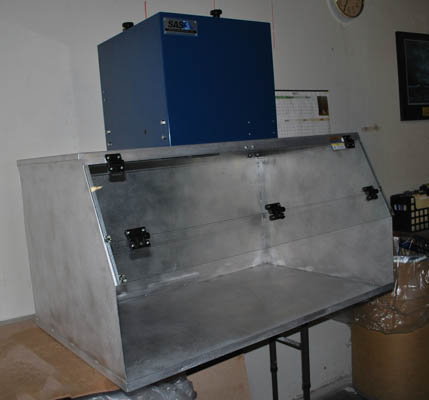

Stainless Steel Fume Hood

Sentry Air Systems’ Stainless Steel Fume Hood provides a portable, energy efficient, and economical solution for many commercial, medical, laboratory and industrial applications that require a containment hood. These ductless hoods are designed and manufactured to extract fumes and harmful particulate away from the operator by dispensing the toxins through an air filtration system. By utilizing the qualities of the type 304, 16-gauge stainless steel, these fume hoods offer resistance to a wide range of chemicals, moisture and heat resistance, and can be easily cleaned or decontaminated.

Primarily the functions of the hood are to provide personal protection against the user and environment. However, the ESD-SAFE, Stainless Steel Fume Hood is also suitable for electrostatic sensitive applications and compounds.

Typically, the applications for a stainless steel ductless fume hood are biological sciences, dust removal, soldering, pharmaceutical compounding containment, chemical fume control, solvent or epoxy use, and many other applications that require the removal of harmful fumes and particulate in a confined area.

Features and Benefits

Environmentally-Friendly: In many cases, ducted exhaust hoods empty extracted fume and particulate directly outdoors without sending it through a filtration system first. Ductless Fume Hoods trap hazardous particulate in filters so they can be disposed of properly.

Energy Efficiency/Cost Efficiency: Ductless Fume Hoods recirculate existing room air, while externally ducting systems remove heated, cooled, or dehumidified air outdoors, which requires that air to be replaced. This has the potential to waste energy and increase cost.

ESD-Safe: In the electronics manufacturing process, a variety of engineering controls are put in place to avoid electrostatic discharge, such as placing conducting wrist and ankle straps on operators, utilizing anti-static mats and floor materials, humidity manipulation, and a variety of additional control measures.

Sentry Air Systems offers ESD-Safe Ductless Fume Hoods & Exhaust Hoods as a respiratory engineering control for use during applications that are sensitive to electrostatic discharge.

Available Filters

  • HEPA Filter
    Up to 99.97% efficient on particles down to 0.3 microns
  • ASHRAE Filter
    Up to 95% efficient on particles down to 0.5 microns
  • ULPA Filter
    Up to 99.9995% efficient on particles down to 0.12 microns
  • Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.

Product Video

Hood Dimensions:
- O.D.: 23.5"D x 32"W x 24"H
- I.D.: 23.25"D x 30"W x 24"H

Hood Material:
- 16awg 304 Stainless Steel
- All Fasteners 304 Stainless Steel

Motor:
Fractional Horsepower

Weight:
Approx. 100 lbs.

Available Filter Efficiencies:
HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns
ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns
ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns
Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.

Blower Dimensions:
13" L x 13" W x 14.5"

Approximate Inlet Velocities: Pre-filter & 99.97% HEPA Filter - 130 FPM High; 25 FPM Low
Pre-filter & Heavy-duty Carbon Filter - 115 FPM High; 20 FPM Low

Electrical:
115/1/60, 2 amps
220/1/50, .75 amps

Sound Level:
61 to 66 dba (Blower Speed: Low to High)

Max Operating Temperature:
Not to exceed 170 degrees Fahrenheit

Warranty:
Limited two-year warranty from date of shipment on defects due to materials or workmanship.

Patented Design:
U.S. PATENT #5,843,197

Product Video

Hood Dimensions:
- O.D.: 23.5"D x 42"W x 24"H
- I.D.: 23.25"D x 40"W x 24"H

Hood Material:
- 16awg 304 Stainless Steel
- All Fasteners 304 Stainless Steel

Front Windows:
0.250" Clear Polycarbonate

Motor:
Fractional Horsepower

Total Weight:
Approx. 110 lbs.

Available Filter Efficiencies:
HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns
ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns
ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns
Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.

Blower Dimensions:
13" L x 13" W x 14.5"

Approximate Inlet Velocities:
Pre-filter & 99.97% HEPA Filter - 130 FPM High; 25 FPM Low
Pre-filter & Heavy-duty Carbon Filter - 115 FPM High; 20 FPM Low

Electrical:
115/1/60, 2 amps
220/1/50, .75 amps

Sound Level:
61 to 66 dba (Blower Speed: Low to High)

Max Operating Temperature:
Not to exceed 170 degrees Fahrenheit

Warranty:
Limited two-year warranty from date of shipment on defects due to materials or workmanship.

Patented Design:
U.S. PATENT #5,843,197

Product Video

Hood Dimensions:
- O.D.: 23.5"D x 52"W x 24"H
- I.D.: 23.25"D x 50"W x 24"H

Hood Material:
- 16awg 304 Stainless Steel
- All Fasteners 304 Stainless Steel

Front Windows:
0.250" Clear Polycarbonate

Motor:
Fractional Horsepower

Total Weight:
Approx. 125 lbs..

Available Filter Efficiencies:
HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns
ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns
ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns
Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.

Blower Dimensions:
13" L x 13" W x 14.5"

Approximate Inlet Velocities:
Pre-filter & 99.97% HEPA Filter - 130 FPM High; 25 FPM Low
Pre-filter & Heavy-duty Carbon Filter - 115 FPM High; 20 FPM Low

Electrical:
115/1/60, 2 amps
220/1/50, .75 amps

Sound Level:
61 to 66 dba (Blower Speed: Low to High)

Max Operating Temperature:
Not to exceed 170 degrees Fahrenheit

Warranty:
Limited two-year warranty from date of shipment on defects due to materials or workmanship.

Patented Design:
U.S. PATENT #5,843,197

Quick Compare

Stainless Steel Fume Hood
30 in. Fume Hood
Stainless Steel Fume Hood
40 in. Fume Hood
Stainless Steel Fume Hood
50 in. Fume Hood
Hood Dimensions: - O.D.: 23.5"D x 32"W x 24"H
- I.D.: 23.25"D x 30"W x 24"H
- O.D.: 23.5"D x 42"W x 24"H
- I.D.: 23.25"D x 40"W x 24"H
- O.D.: 23.5"D x 52"W x 24"H
- I.D.: 23.25"D x 50"W x 24"H
Blower Dimensions: 13" L x 13" W x 14.5" 13" L x 13" W x 14.5" 13" L x 13" W x 14.5"
Weight: Approx. 100 lbs. Approx. 110 lbs. Approx. 125 lbs.
Electrical 115/1/60, 2 amps
220/1/50, .75 amps
115/1/60, 2 amps
220/1/50, .75 amps
115/1/60, 2 amps
220/1/50, .75 amps
Sound Level 61 to 66 dba (Blower Speed: Low to High) 61 to 66 dba (Blower Speed: Low to High) 61 to 66 dba (Blower Speed: Low to High)
