Source Capture Mist Collector

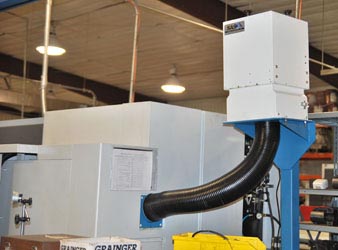

The Source Capture Mist Collectors offer a compact and powerful solution to filter oil mist, water mist or coolant mist produced from industrial processes. This line of units mounts to the machinery to capture the oil from the source. Commonly these units are used for CNC mist elimination but can also be used for air filtration on other machines that produce oil, water or coolant mist. These unique and simple units provide ease of installation due to no external exhaust or ducting is required for air output. The source capture mist collectors features quiet operation, energy efficiency and minimal maintenance.

Source capture mist collectors filter the air through a three filter system: cleanable mist pre-filter, carbon pre-filter and main filter with customizable options. The unique washable mist pre-filter collects mist and drains the oil back into the system for repurposing, depending on the application. The carbon pre-filter adsorbs chemicals eliminating fumes and smells. The main filter is available in ASHRAE, HEPA, or ULPA filter.

200 Series


CNC Machine Mist Collection

200 Series Mist Collector Specifications

    Cabinet Dimensions:     Cabinet Material:
     - 10.5"L x 9"W x 11"H      - 16 ga. carbon steel
    Air Volume: Up to 100 CFM     Total Weight: Approx. 15 lbs.
    Motor: Fractional Horsepower

   Available Filter Efficiencies:

   HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns in size.
   ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns in size.
   ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns in size.
   Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.

   Inlet Size:

   8" x 8"

   Electrical:    Sound Level:
    115/1/60, .3 amps     55 dba @ 3 ft. from hood inlet
    220/1/50, .2 amps

   Max Operating Temperature:
   Not to exceed 170 degrees Fahrenheit

   Warranty:
   Limited two-year warranty from date of shipment on defects due to materials or workmanship.

   Patented Design:
   U.S. PATENT #5,843,197

300 Series


18 in Ductless Fume Hood
Loading the player...

300 Series Mist Collector Specifications

    Cabinet Dimensions:     Cabinet Material:
     - 15.5"L x 13"W x 21.25"H      - 16 ga. carbon steel
    Air Volume: Up to 300 CFM     Total Weight: Approx. 60 lbs.
    Motor: Fractional Horsepower

   Available Filter Efficiencies:

   HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns in size.
   ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns in size.
   ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns in size.
   Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.

   Inlet Size:

   8" x 8"

   Electrical:    Sound Level:
    115/1/60, .3 amps     61 to 66 dba (Blower Speed: Low to High)
    220/1/50, .75 amps

   Max Operating Temperature:
   Not to exceed 170 degrees Fahrenheit

   Warranty:
   Limited two-year warranty from date of shipment on defects due to materials or workmanship.

   Patented Design:
   U.S. PATENT #5,843,197

400 Series



High Flow Mounted Sentry
Loading the player...

400 Series Mist Collector Specifications

    Cabinet Dimensions:     Cabinet Material:
     - 22.5"L x 20"W x 25.25"H      - 16 ga. carbon steel
    Air Volume: Up to 700 CFM     Total Weight: Approx. 100 lbs.
    Motor: Fractional Horsepower

   Available Filter Efficiencies:

   HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns in size.
   ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns in size.
   ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns in size.
   Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.

   Inlet Size:

   4”, 5”, 6”, 10”

   Electrical:    Sound Level:
    115/1/60, 2.5 amps     Approx. 60 dba @ 3'
    220/1/50, 1.5 amps

   Max Operating Temperature:
   Not to exceed 170 degrees Fahrenheit

   Warranty:
   Limited two-year warranty from date of shipment on defects due to materials or workmanship.

   Patented Design:
   U.S. PATENT #5,843,197

450 Series



High Flow Mounted Sentry
Loading the player...

450 Series Mist Collector Specifications

    Cabinet Dimensions:     Cabinet Material:
     - 22.5"L x 20"W x 25.25"H      - 16 ga. carbon steel
    Air Volume: Up to 950 CFM     Total Weight: Approx. 100 lbs.
    Motor: 1.5 Horsepower

   Available Filter Efficiencies:

   HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns in size.
   ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns in size.
   ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns in size.
   Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.

   Inlet Size:

   4”, 5”, 6”, 10”

   Electrical:    Sound Level:
    115/1/60, 10.7 amps     Approx. 72 dba @ 3'
    220/1/50, 5.35 amps

   Max Operating Temperature:
   Not to exceed 170 degrees Fahrenheit

   Warranty:
   Limited six-month warranty from date of shipment for the fan/motor assembly. Limited two-year warranty from date of shipment on defects to parts/assembly due to materials or workmanship.

   Patented Design:
   U.S. PATENT #5,843,197

How does a Source Capture Mist Collector work?

- Step 1 - Pre-filter – Mist enters mist pre-filter. Depending on the application, collected oil, coolant or water drains back into the machinery to be reused.

- Step 2 - Carbon Pre-filter – Air is filtered through a carbon pre-filter where large particulates are captured.

- Step 3 - Main Filter- Air is purified by passing through a final filter. This final stage will capture fine particulates. Filter choices include:

  • ASHRAE Filter (up to 95% efficiency on particles down to 0.5 microns)
  • HEPA Filter (up to 99.97% efficiency on particles down to 0.3 microns)
  • ULPA Filter (up to 99.9995% efficiency on particles down to 0.12 microns)

- Step 4 - Filtered Air – Filtered air is discharged back into work area

Mist collectors filter the air in machine shops in order to remove harmful oil mist from CNC machines, milling and grinding processes. These systems are commonly used for CNC machine shops to eliminate oil mist. However, they can also be used to collect and filter systems with coolant mist, water mist or other oil mist.

Source Capture Mist Collector features and benefits

  • Washable mist pre-filter
  • Reliable, low maintenance system
  • Quiet operation
  • Low power consumption
  • Small footprint
  • Long filter life
  • Portable and lightweight (Models 200 & 300 only)
  • Simple, quick, “no tool” filter change
  • Main filter media made of all flame retardant materials

Source Capture Mist Collector Accessories

Quick Change Pre-Filter
SS-300-QCPF
Allows easy access to pre-filters.
Remote Control Box
SS-300-RCB
Controls unit operation remotely.
Magnehelic Gage
SS-300-MAG
Monitors filter saturation
Hour Counter
SS-000-HC
Displays hours unit has
been in operation.
