Wall Mounted Fume Extractor

Sky Sentry

Model # SS-400-SKY & Model # SS-450-SKY

Portable Fume Extractor
Loading the player...

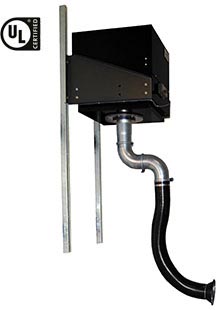

The Sky Sentry is a wall-mounted fume extractor that features a free-hanging, self-supportive and flame-retardant flex arm that can easily be maneuvered by the operator to their desired location. In limited space environments, this unit frees up valuable benchtop and floor space while the flex arm provides a 62.5” swivel radius.

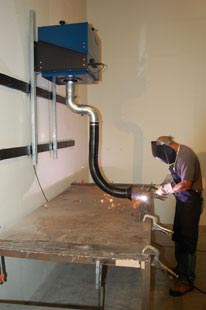

Typical applications for this system include: welding fume extraction, brazing fume control, particulate extraction, removal of organic vapors, solvent and epoxy fumes, chemical fumes, light grinding, and various other industrial processes where a wall-mounted fume extractor is needed.

Depending on the application, several filter combinations can be utilized. Typical filtration media include: HEPA [up to 99.97% efficient on particles 0.3 microns and larger], ASHRAE [up to 95% efficient on particles 0.5 microns and larger], Activated Carbon, and specialty-blended filtration media [i.e. Acid Gas, Mercury, Aldehyde, Ammonia]. Multiple filter media can be housed inside the filter chamber for applications that emit both particulates and fumes.

Two smaller models [SS-200-SKY & SS-300-SKY] are available.

Python Welding Fume Extractor
Python Welding Fume Extractor
Python Welding Fume Extractor
SS-300-SKY Shown
Specifications

SS-400-SKY

brochure
Cabinet Dimensions:
22.5"L x 20"W x 19.5"H
Arm
Dimensions:
4" Round x 32" Long fire retardant flex hose
Flex Arm Working
Area:
62.5" Swivel Radius when unit is mounted
52" above work surface
Weight:
50 lbs to 100 lbs
Cabinet Material:
16 ga. carbon steel
Motor:
Fractional Horsepower
Available Filter
Efficiencies:
HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns in size.
ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns in size.
ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns in size.
Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.
Air Volume:
Variable Speed Control Standard on 115
400 CFM High, Down to 50 CFM Low
On/Off Toggle Switch Standard on 220
Electrical:
115/1/60, 2.5 amps
220/1/50, 1.5 amps
Sound Level:
Approx. 60 dba @ 3'
Warranty:
Limited two-year warranty from date of shipment on defects due to materials or workmanship.
Patented Design:
U.S. PATENT #5,843,197
U.S. PATENT #8,353,745

SS-450-SKY

brochure
Cabinet Dimensions:
22.5"L x 20"W x 19.5"H
Arm
Dimensions:
4" Round x 32" Long fire retardant flex hose
Flex Arm Working
Area:
62.5" Swivel Radius when unit is mounted
52" above work surface
Weight:
62 lbs to 112 lbs.
Cabinet Material:
16 ga. carbon steel
Motor:
1.5 HP
Available Filter
Efficiencies:
HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns in size.
ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns in size.
ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns in size.
Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.
Air Volume:
Variable Speed Control Standard on 115
500 CFM High, Down to 50 CFM Low
On/Off Toggle Switch Standard on 220
Electrical:
115/1/60, 10.7 amps
220/1/50, 5.35 amps
Sound Level:
Approx. 72 dba @ 3'
Warranty:
Limited six-month warranty from date of shipment for the fan/motor assembly. Limited two-year warranty from date of shipment on defects to parts/assembly due to materials or workmanship.
Patented Design:
U.S. PATENT #5,843,197
U.S. PATENT #8,353,745

All specifications are nominal and subject to change without notice. Not intended for explosive or highly flammable applications. (i.e. when the Lower Flammability Limit is exceeded for any given chemical). Please consult the specific MSDS for questions regarding flammability limits.

Accessories

Quick Change Pre-Filter
SS-400-QCPF
Allows easy access to pre-filters.
Remote Control Box
SS-400-RCB
Controls unit operation remotely.
Magnehelic Gage
SS-400-MAG
Monitors filter saturation
Hour Counter
SS-000-HC
Displays hours unit has
been in operation.
