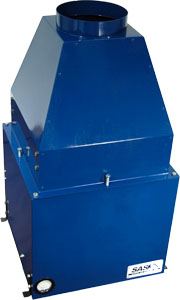

Mounted Fume Extractor with Outlet Plenum

Mounted Sentry with Outlet Plenum

Model # SS-400-MSP & Model # SS-450-MSP

Mounted Fume Extractor with Outlet Plenum
Loading the player...

The Model 400 and 450 Mounted Sentry with Outlet Plenum is primarily used to exhaust filtered air or create a positive pressure environment. When exhausting the air, a 9” diameter exhaust collar allows filtered air to be directed outside or into your central exhaust system or ducting. When this unit is combined with HEPA or ULPA filtration, it can also be utilized to create positive pressure where clean air flow is required on enclosures or compact clean rooms. This system also has the option of remaining ductless to recirculate filtered air back into the immediate area.

Typical applications for this unit include: Chemical and Solvent Fume Extraction, Laser Marking, Printing Fumes, Soldering Fumes, Particulate Extraction, Positive Pressure Airflow, Positive Pressure Clean Room, Sterile Assembly, Pharmaceutical Powder Control, Chemical Fume Exhaust, Enclosed Machinery Mounting, and many other applications that produce particulate, smoke, dust, and fumes.

High-quality filter media for this unit is customized depending on the application being performed, but typically includes HEPA filters [up to 99.97% efficient on particles 0.3 microns and larger], ULPA filters [up to 99.9995% efficient on particles 0.12 microns and larger], ASHRAE filters [up to 95% efficient on particles 0.5 microns and larger], Activated Carbon, and specialty-blended filtration media [i.e. Acid Gas, Mercury, Aldehyde, Ammonia]. The Mounted Sentry with Outlet Plenum allows multiple filter media to be housed inside the filter chamber for applications that emit both particulates and fumes.

The Mounted Sentry is available in two smaller models [SS-200-MSP and SS-300-MSP] and without the outlet plenum [SS-400-MS].

Mounted Sentry Air Cleaner
SS-200-MSP Shown
Mounted Sentry Air Cleaner
SS-300-MSP Shown
Specifications

SS-400-MSP

brochure
Cabinet Dimensions:
22.5"L x 22"W x 39.75"H
Weight:
50 lbs to 100 lbs
Cabinet Material:
16 ga. carbon steel
Motor:
Fractional Horsepower
Available Filter
Efficiencies:
HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns in size.
ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns in size.
ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns in size.
Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.
Air Volume:
Variable Speed Control Standard on 115
700 CFM High, Down to 50 CFM Low
On/Off Toggle Switch Standard on 220
Electrical:
115/1/60, 2.5 amps
220/1/50, 1.5 amps
Sound Level:
Approx. 60 dba @ 3'
Warranty:
Limited two-year warranty from date of shipment on defects due to materials or workmanship.
Patented Design:
U.S. PATENT #5,843,197
U.S. PATENT #8,353,745

SS-450-MSP

brochure
Cabinet Dimensions:
22.5"L x 22"W x 39.75"H
Weight:
62 lbs to 112 lbs.
Cabinet Material:
16 ga. carbon steel
Motor:
1.5 HP
Available Filter
Efficiencies:
HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns in size.
ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns in size.
ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns in size.
Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.
Air Volume:
Variable Speed Control Standard on 115
950 CFM High, Down to 50 CFM Low
On/Off Toggle Switch Standard on 220
Electrical:
115/1/60, 10.7 amps
220/1/50, 5.35 amps
Sound Level:
Approx. 72 dba @ 3'
Warranty:
Limited six-month warranty from date of shipment for the fan/motor assembly. Limited two-year warranty from date of shipment on defects to parts/assembly due to materials or workmanship.
Patented Design:
U.S. PATENT #5,843,197
U.S. PATENT #8,353,745

All specifications are nominal and subject to change without notice. Not intended for explosive or highly flammable applications. (i.e. when the Lower Flammability Limit is exceeded for any given chemical). Please consult the specific MSDS for questions regarding flammability limits.

Accessories

Quick Change Pre-Filter
SS-400-QCPF
Allows easy access to pre-filters.
Remote Control Box
SS-400-RCB
Controls unit operation remotely.
Magnehelic Gage
SS-400-MAG
Monitors filter saturation
Hour Counter
SS-000-HC
Displays hours unit has
been in operation.
