Portable Fume Extractor

Python Portable Floor Sentry

Model # SS-400-PYT & Model # SS-450-PYT

Portable Fume Extractor
Loading the player...

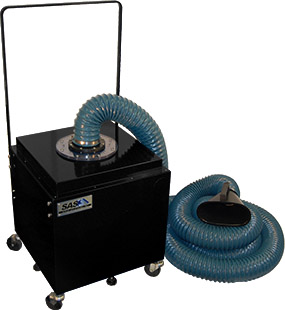

The Model 400 and Model 450 Python fume extractor is best used in hard-to-reach applications where an extended flexible hose is needed [i.e. tank welding]. The included 12-foot long, flame-retardant flex hose features a magnetic capture hood with handle that enables the operator to attach it to a surface without having to manually hold the hose in place while capturing welding smoke, dust, or fumes. An optional 25-foot hose is also available.

Typical applications for this unit are maintenance welding, light grinding applications, stainless steel tank welding, welding in confined spaces, fume extraction in elevated spaces [e.g. asbestos in ceiling and raptors], rapid location welding applications, stainless steel pipe welding, welding on metal beams, VOC removal, and particulate and fume removal.

Other features of this system include quiet operation, heavy-duty casters for convenient mobility, and high efficiency filtration. Filtration media is selected depending on the application being performed. Typical media includes: HEPA [up to 99.97% efficient on particles 0.3 microns and larger, ASHRAE [up to 95% efficient on particles 0.5 microns and larger], Activated Carbon, and specialty-blended filter media [i.e. Acid Gas, Mercury, Aldehyde, Ammonia].

This Model 400 and 450 Python Portable Floor Sentry combines quiet operation, energy-efficient technology, and a unique design for highly effective fume extraction in hard-to-reach areas.

A smaller model is also available [SS-300-PYT].

Python Welding Fume Extractor
Python Welding Fume Extractor
Specifications

SS-400-PYT

brochure
Cabinet Dimensions:
22.5"L x 20"W x 19.5"H
Arm
Dimensions:
6" Round x 12 ft. Flame Retardant Hose w/ Magnetic Capture Hood and Handle, Optional 25 ft. Hose Available Upgraded Python HD hood w/ inlet grill & dual magnets available.
Weight:
50 lbs to 100 lbs
Cabinet Material:
16 ga. carbon steel
Motor:
Fractional Horsepower
Available Filter
Efficiencies:
HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns in size.
ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns in size.
ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns in size.
Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.
Air Volume:
Variable Speed Control Standard on 115
700 CFM High, Down to 50 CFM Low
On/Off Toggle Switch Standard on 220
Electrical:
115/1/60, 2.5 amps
220/1/50, 1.5 amps
Sound Level:
Approx. 60 dba @ 3'
Warranty:
Limited two-year warranty from date of shipment on defects due to materials or workmanship.
Patented Design:
U.S. PATENT #5,843,197
U.S. PATENT #8,353,745

SS-450-PYT

brochure
Cabinet Dimensions:
22.5"L x 20"W x 19.5"H
Arm
Dimensions:
6" Round x 12 ft. Flame Retardant Hose w/ Magnetic Capture Hood and Handle, Optional 25 ft. Hose Available Upgraded Python HD hood w/ inlet grill & dual magnets available.
Weight:
62 lbs to 112 lbs.
Cabinet Material:
16 ga. carbon steel
Motor:
1.5 HP
Available Filter
Efficiencies:
HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns in size.
ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns in size.
ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns in size.
Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.
Air Volume:
Variable Speed Control Standard on 115
950 CFM High, Down to 50 CFM Low
On/Off Toggle Switch Standard on 220
Electrical:
115/1/60, 10.7 amps
220/1/50, 5.35 amps
Sound Level:
Approx. 72 dba @ 3'
Warranty:
Limited six-month warranty from date of shipment for the fan/motor assembly. Limited two-year warranty from date of shipment on defects to parts/assembly due to materials or workmanship.
Patented Design:
U.S. PATENT #5,843,197
U.S. PATENT #8,353,745

All specifications are nominal and subject to change without notice. Not intended for explosive or highly flammable applications. (i.e. when the Lower Flammability Limit is exceeded for any given chemical). Please consult the specific MSDS for questions regarding flammability limits.

Accessories

Quick Change Pre-Filter
SS-400-QCPF
Allows easy access to pre-filters.
Python Table Stand
SS-000-ATS
Adjustable Height Stand for Elevated Source Capture
Magnehelic Gage
SS-400-MAG
Monitors filter saturation
Hour Counter
SS-000-HC
Displays hours unit has
been in operation.
REPLACEMENT
FILTERS
Additional Configuration - Dual Python Hoses

100 Series (Up to 80 CFM)
200 Series (Up to 100 CFM)
300 Series (Up to 350 CFM)
400 Series (Up to 700 CFM)
450 Series (Up to 950 CFM)
500 Series (Up to 1300 CFM)
Extractor Arms (Exhaust Hoses)
Accessories (For All Products)

Additional Configurations 400 Series - Up To 700 CFM
450 Series - Up To 950 CFM
