Benefits of Mist Collectors

Benefits of Mist Collectors

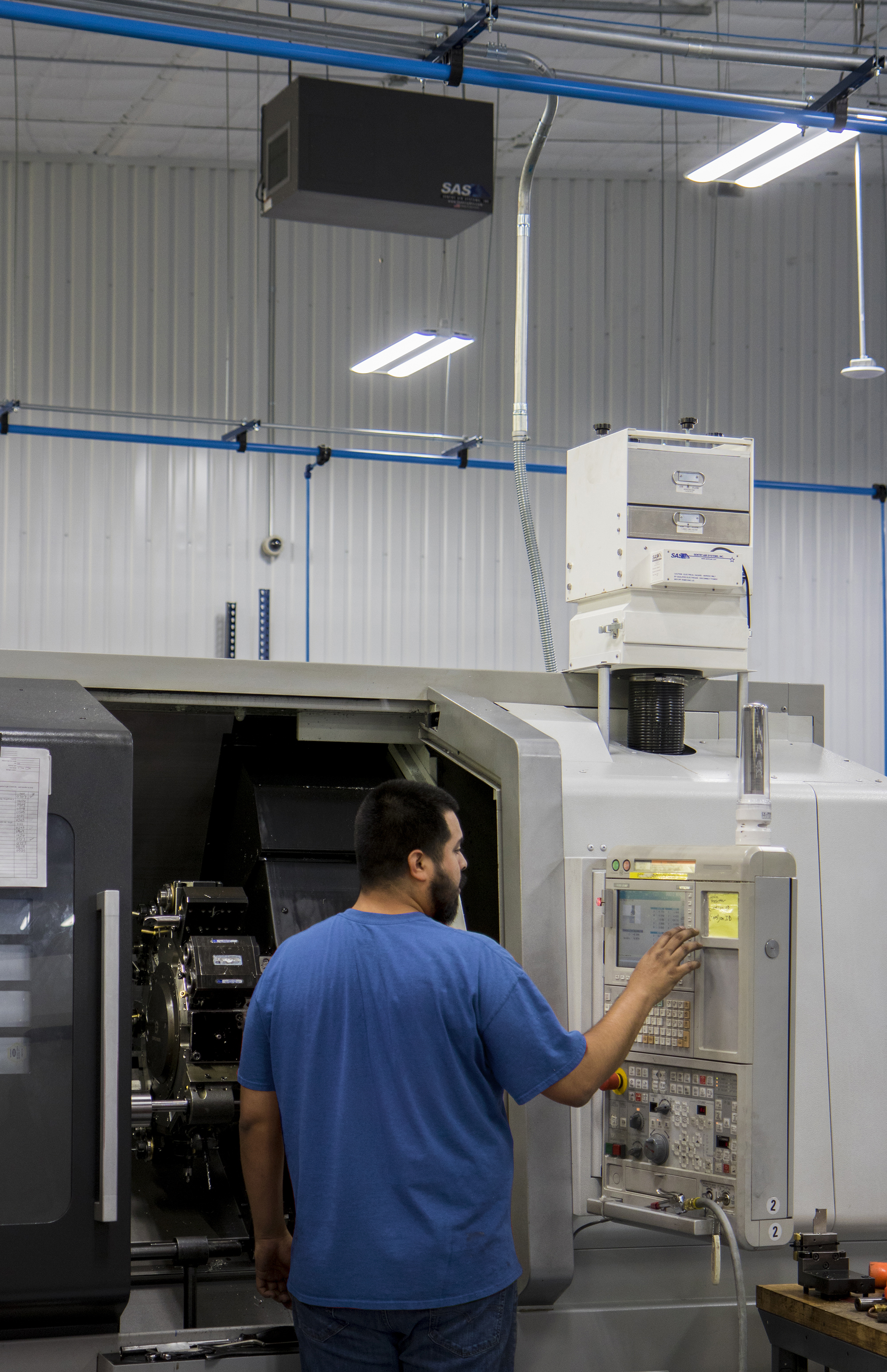

CNC Machine Shop with Primary Mist Collectors (SS-300-MIST) and
Ambient Air Mist Collectors (SS-2000-MIST)

Benefits of mist collectors include reducing maintenance and downtime, as well as safeguarding overall shop safety and employee health for CNC machine shops. Government organizations, such as OSHA, legally require employers to meet exposure limits. Machining, milling, and grinding processes produce oil mist when metalworking fluids come in contact with tooling components and become dispersed throughout the air. Oil mist turns into oil smoke when exposed to high temperatures during processes. Oil mist and smoke create health hazards and contaminate expensive and vital CNC machine parts.

Benefits of Mist Collectors – Reduce Maintenance & Downtime

Oil mist collectors benefit CNC machines by reducing maintenance needs and downtime. The picture below shows an oil-laden fan that has been removed from a CNC machine. CNC machines lacking proper mist collectors create common and reoccurring maintenance problems soiling parts including fans, circuit boards, control panels, cooling system filters, and tooling parts1.

Benefits of Mist Collectors

Dirty Fan from CNC Machine without a Mist Collector

First, dirt and high humidity damage circuit boards and clog up cooling system filters. Once cooling system filters start to clog, airflow becomes blocked resulting in system failure or other performance issues1. The cooling system protects valuable electronic components such as the drives, power supplies, monitors, and control systems. If the cooling system does not work properly, temperatures will rise causing electronic components to become damaged and even fail to operate properly1.

Similarly, oil mist can seep into the coolant pump systems creating bacteria that deteriorate seals on the motor pumps2. Also, dirty coolant corrodes metal surfaces leading to tool degradation, accuracy problems, and declining parts quality2.

Likewise, oil mist can clog filters and coils in the shop’s HVAC or air conditioning system. High energy costs can result from over exhausting air to remove the oil mist in the ambient air3.

Furthermore, increased frequency of maintenance causes more machine downtime with a reduction in productivity. Properly controlling oil mist reduces the need for maintenance and allows production to continue on schedule. In turn, money can be saved with the reduction of the need for replacement parts and technician visits.

Benefits of Mist Collectors – Ensure General Shop Safety

In a like manner, oil mist collectors benefit overall shop safety. Lack of oil mist collectors leads to overall shop safety concerns; even in enclosed CNC machines, oil mist can escape when opening the door while loading raw materials and removing finished parts4. When oil mist escapes from CNC machines, it lands on nearby surfaces around a machine shop including walls, counters, floors, and lighting4. Oil mist on lighting makes it darker in the shop and oil on other surfaces creates more need for housekeeping3. Not only does this cause cleanliness concerns, but oil on the floor may create a slip hazard. Equally, oil mist creates a fire hazard by creating a flammable line of oil on the floor and other surfaces4.

Benefits of Mist Collectors – Protect Employee Health

Moreover, benefits of mist collectors encompass protecting employee health from exposure to oil mist through dermal contact and inhalation5.

Dermal Exposure

First, when oil mist touches skin, contact dermatitis may form in areas of exposure5. Dermatitis causes itchy skin, rashes, and may cause the skin to crack, become red, blister and develop the appearance of bumps5. Skin conditions must be treated to prevent more serious complications from untreated dermatitis5.

Inhalation of Oil Mist

Benefits of Mist Collectors

Common Side Effects of Oil Mist Inhalation

Next, inhalation of oil mist causes respiratory irritations leading to shortness of breath, vomiting, fever, rapid heartbeat, headaches, fatigue, and a burning sensation in the mouth, throat, or stomach5.

Additionally, lasting respiratory conditions may develop from continual oil mist inhalation. Oil mist can activate onset asthma, cause existing asthma flare ups, and irritate airways of non-asthmatic employees5. Chronic bronchitis may develop starting with a chronic cough with phlegm and lead to lung impairment, lung damage, and heart damage5. A very serious lung disease called hypersensitivity pneumonitis causes coughing, shortness of breath, and flu like symptoms5. In the chronic stage, permanent lung scarring develops from this lifeline lung disease5.

Although less common today, oil mist exposure has been known to cause an increased risk of cancer of the rectum, pancreas, larynx, skin, scrotum, and bladder5. Modern metalworking fluids have been engineered to reduce cancer risks but because of the delay in cancer symptoms and development, there is no proof that long term oil mist exposure cancer risks have been improved5.

Benefits of Mist Collectors – Meet Legal Requirements

Additionally, benefits of mist collectors includes meeting legal requirements. Employers are legally required to restrict employee exposure to oil mist. OSHA legally limits the amount of exposure to 5 mg/m3 over 8 hour workday6. NIOSH and ACGIH recommend the same exposure limit as OSHA6.

CNC Machine Oil Mist Collectors Solutions

Benefits of Mist Collectors

CNC Machine with Primary Mist Collectors (SS-300-MIST) and Ambient Air Mist Collectors (SS-2000-MIST)

Sentry Air Systems offers two types of oil mist collectors primary control and secondary control mist collectors.

Primary Control

Primary control mist collectors capture oil from the source by directly mounting on the CNC machine. These systems release filtered air back into the shop without requiring expensive external ducting or exhaust.


Unit Picture benefits of mist collectors benefits of mist collectors benefits of mist collectors
Model Model 200
Model 300
Model 400/450
Benefits Collects oil and drains it back in the machine for reuse, reliable and low maintenance, quiet operation, low power consumption, small footprint, long filter life, main filter made of flame retardant materials
Best Use Collect oil or water mist directly from machine
Filtration Process 3 filter system:
1) Cleanable Mist Pre-Filter
2) Carbon Pre-Filter
3) Main Filter:
• ASHRAE (up to 95% efficiency on particles as small as 0.5 micron)
• HEPA (up to 99.97% efficiency on particles as small as 0.3 microns)
• ULPA (up to 99.9995% efficiency on particles as small as 0.12 microns)
Air Flow 100 CFM 350 CFM 400 – up to 700 CFM
450 – up to 950 CFM
Inlet Sizes 8” x 8” 5” diameter 4”, 5”, 6”, 10” diameter

For more information please visit our web page on source capture mist collectors:

Benefits of Mist Collectors - Primary

Secondary Control

Secondary control mist collectors hang from the air or can be mounted on stands. These units collect remaining mist in the air that may have escaped from the machine when the door opens or during cleaning. These systems also could be used in older CNC machines that do not allow for direct mounting such as open CNC machines.

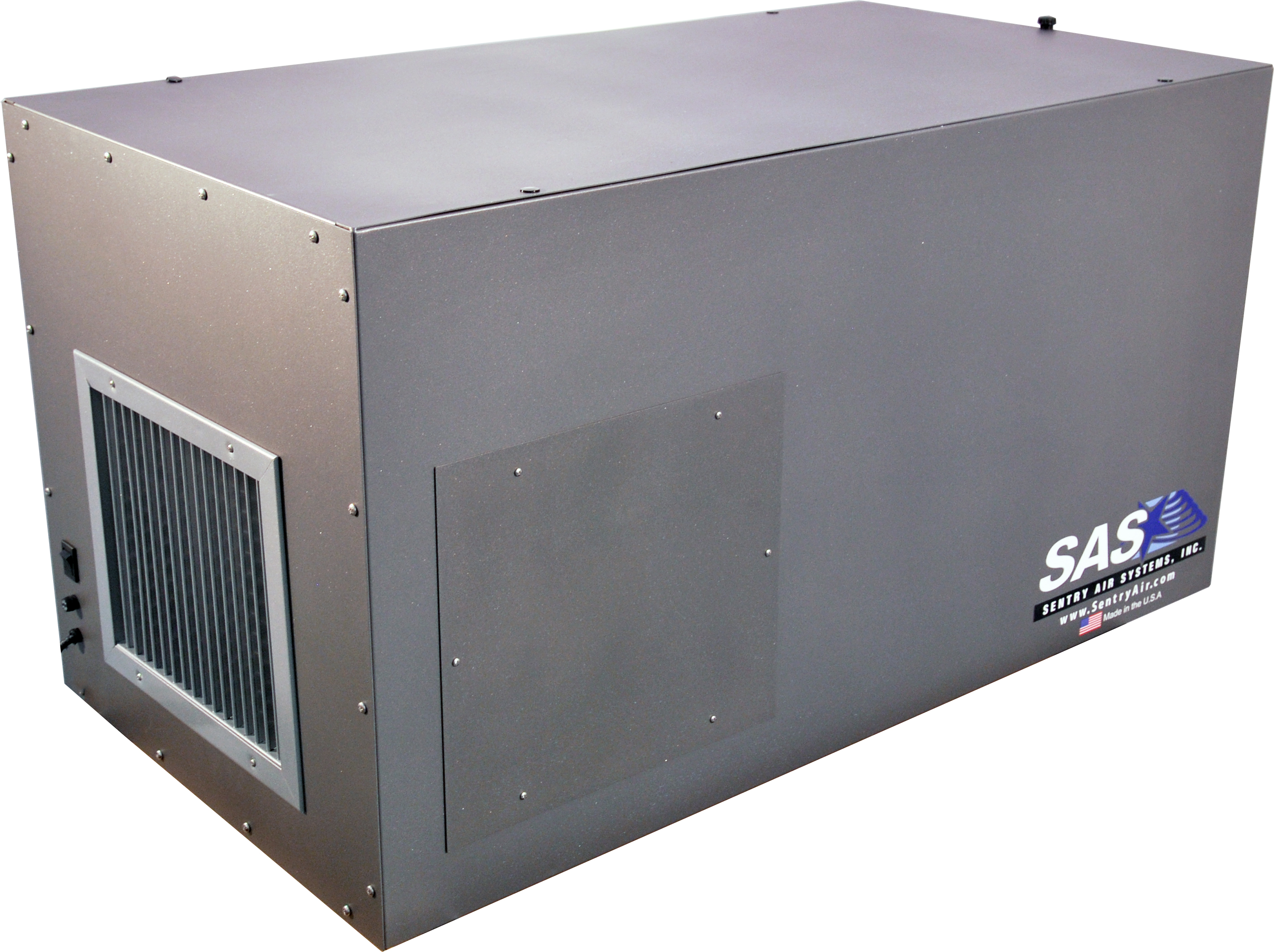

Unit Picture Model 2000 - Ambient Mist Collectors - Benefits of Mist Collectors
Model SS-2000-MIST
Benefits Collects oil in drain for repurposing, reliable, low maintenance, quiet operation, sturdy construction, long filter life, four-way adjustable grate, all flame retardant filter media
Best Use In conjunction with a primary control mist collector or for units that cannot have direct mounting
Filtration Process 5 filter process – 4 cleanable mesh pre-filters, 1 oil bag filter
Air Flow Up to 2,000 CFM
Inlet Sizes 23.66” x 23.375”

For more information please visit our web page on ambient air mist collectors:

Benefits of Mist Collectors - Secondary

Contact us today to prolong the life of your CNC machines, reduce maintenance, and improve safety by installing a mist collector system!

Contact Us - Benefits of Mist Collectors
Email Us - Benefits of Mist Collectors
Visit Our Web Site - Benefits of Mist Collectors

Feel free to give us a call to talk to an application expert about adding an oil mist collector to your machine shop! — 1.800.799.4609
